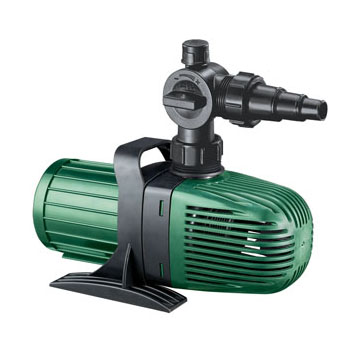

FishMate - Submersible Pump- Model 2300 - 2250 GPH

FishMate / AniMate Pond and Fountain Pump - Model 2300US / 9000

Details:

• Manufacturer's Part # 379
• Manufacturer's Model # 2300
• Replaces Previous Item # 279 Model # 2500
• Description: 2250 GPH Submersible Pond and Fountain Pump with Diverter Valve and Fountain Nozzles
• Voltage: 110V-120V 60hZ
• Power Consumption - Watts / Amps: 85 W/ 0.70 A
• Pump Max Flow: 2250 GPH
• Solids Handling: up to 3/8" solids
• Pump Power Cord: 24ft Long with 3 Prong Grounded Cord
• Maximum Head Lift / Shut-Off: 16' 5"
• Pump Discharge / Output: 1-1/4" BSP - Includes 3/4", 1" and 1-1/4" Barbed / Insert fittings
• Dimensions: approx. 9.75" L x 4.75" W x 5.25" H (not including fountain nozzles or diverter)
• Height: approx. 18" H (including 2 Tier OR 3 Tier fountain nozzle and diverter valve w/ fountain extension tube)
• Height: approx. 20.75" H (including Waterbell fountain nozzle and diverter valve w/ fountain extension tube)
• Product Instruction Manual    Adobe .PDF (opens in new window)
• Manufacturer Warranty: 3 Year Limited

Pump Cut Away:





1. Single control knob adjusts flow to fountain and waterfall/filter
2. Ceramic shaft bearings and superior rotor design for long service life
3. Fully encapsulated electrical parts for safety
4. High efficiency pump turbine handles solids to 1/4� and ensures low running costs
5. Strainer filter less prone to blockage and easier to clean than conventional foam filters
6. Pondlife friendly slots may be enlarged to 1/4� for solids-handling
7. Open handle for easy placement/retrieval from pond




Included Fountain Heads:

FishMate Pumps Include the following 4 Fountain Heads and Diverter Valve.
Tiered	Column	Bell	Plume

What's included in the box:

• 1 x Pond and Fountain Pump
• 1 x Set of fountain nozzles and diverter valve
• 1 x Set of Barbed fittings including 3/4", 1" and 1-1/4"
• 1 x Instruction manual
