Product Details

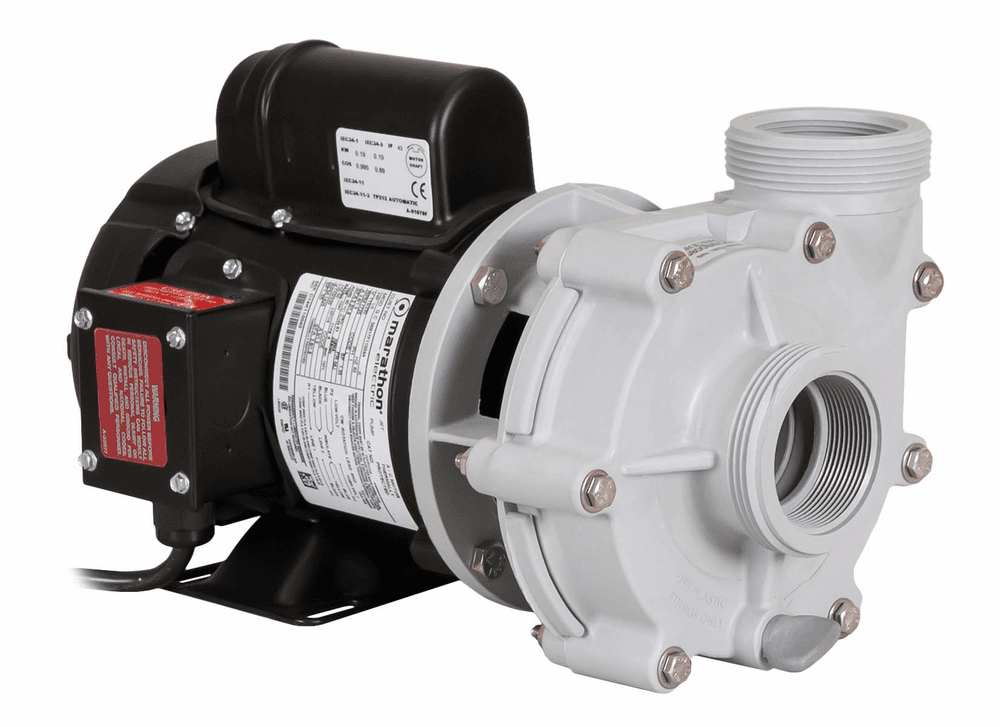

Sequence® 4000 Series External Pump

The model 4000 series expansive design will meet today's increased market demand for performance on all levels. This series is a perfect blend of medium pressure and ample flow for the majority of ponds. Motor is totally enclosed, fan-cooled for durability. These External end-suction centrifugal pumps are ideal for water features, garden ponds, and Koi fish ponds. These sequence pumps can serve a wide variety of water transfer and re-circulation applications. They are designed to operate efficiently over a wide range of flows and pressures. In larger systems, you can use two or more Sequence pumps in parallel to multiply your flow. These external pumps can be installed near areas of relaxation and entertainment and will generate minimal noise levels. These pumps longevity is legendary.

Features:
  • low cost of ownership
  • Ideal for water features, garden ponds, and Koi fish ponds
  • Serve a wide variety of water transfer and re-circulation applications
  • Designed to operate efficiently over a wide range of flows and pressures
  • Generate minimal noise levels
  • Motor is totally enclosed
  • Fan-cooled Motor
  • Made in USA
  • 3 Year Limited Manufacturer Warranty


  • Instruction Manual .PDF
    Specification Sheet .PDF

    Specifications:

    Item Number: 5800SEQ21
    Brand Name: Sequence
    Series: 4000
    Description: Sequence 4000 Series Straight Centrifugal External Pump
    Horsepower (hp): 1/4
    Inlet: 2" FPT / 2" Male Buttress
    Discharge: 2" FPT / 2" Male Buttress
    Max Pump Flow: 5800 GPH
    Max Head: 21 FT

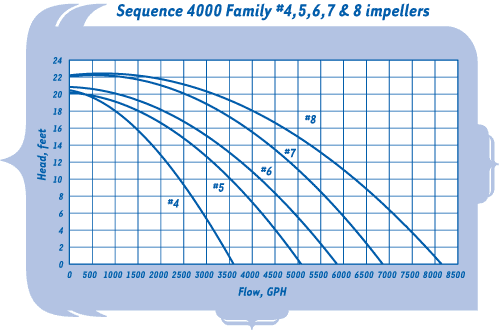

    Flow At Total Dynamic Head of:
  • 4 FT = 5220 GPH
  • 8 FT = 4500 GPH
  • 12 FT = 3720 GPH
  • 16 FT = 2760 GPH
  • 20 FT = 960 GPH

  • Max Wattage: 296 Watts
    Max Amp: 2.6 amps @ 115 V
    Voltage: 115 / 60 Hz
    Power Cord: 8 FT
    Dimensions (Approx.): 14.75" L x 8.65" W x 8.56" H


    NOTE: These pumps are designed to operate below water level out of the water. If you need to operate the pump above water level, you will a Priming Pot/Strainer Basket and a Check valve. The check valve will get installed at the intake to allow for the water to stay in the intake line and create a siphon effect as these pumps do not pull water.

    Item may vary from photo
