Product Details

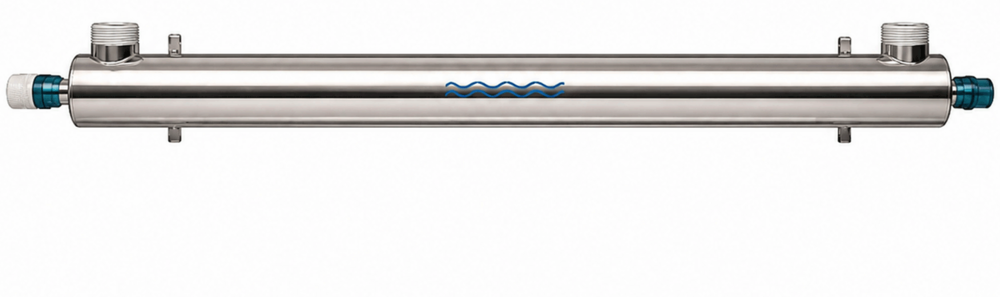

Achieve Crystal Clear Water with the Aqua Ultraviolet Stainless Steel SL 200 Watt Unit
The Aqua Ultraviolet SL 200 Watt UV Unit is a premier, commercial-grade water clarification and sterilization system designed for large ponds, public water features, and aquaculture setups. Built with a rugged, high-quality stainless steel body, this model delivers maximum performance and longevity in demanding environments where plastic alternatives fall short.
Why Choose the Stainless Steel SL Series?
Aqua Ultraviolet is recognized globally for manufacturing some of the best water treatment systems in the industry. The SL Series utilizes an optimized housing design that maximizes ultraviolet exposure, ensuring targeted elimination of free-floating algae, bacteria, and protozoa:
- Reflective Efficiency: The polished stainless steel interior reflects UV rays back through the water column, significantly increasing the unit's overall kill rate compared to standard plastic housings.
- Commercial Reliability: Heavy-duty construction handles high flow rates effortlessly, making it the top choice for large ecosystem filtration systems.
Official Manufacturer Specifications
- Water Sterilization Capacity: Rated for freshwater environments from 17,000 to 22,000 gallons.
- Electrical Draw: High-output configuration optimized for standard 220-240V at 60Hz power supplies.
- Physical Dimensions: Approximate profile measuring 49-1/2" x 4-1/2" x 6-1/4" (extends to an approximate 51-1/2" with the lamp installed).
- Wiper Clearance: Requires an approximate 17" of clear space for proper service maintenance.
- Inlet and Outlet Ports: 2" slip ports designed to allow simple, high-volume plumbing integration.
Recommended Flow Rates by UV Dosage
All dosages are calculated rigorously at the end of lamp life (14 months) to guarantee real-world water clarity:
- 30,000 μw/cm² (Max Flow Rate): 9,200 GPH
- 45,000 μw/cm²: 6,134 GPH
- 60,000 μw/cm²: 4,600 GPH
- 75,000 μw/cm²: 3,680 GPH
- 90,000 μw/cm² (Min Flow Rate): 3,066 GPH
