Product Details

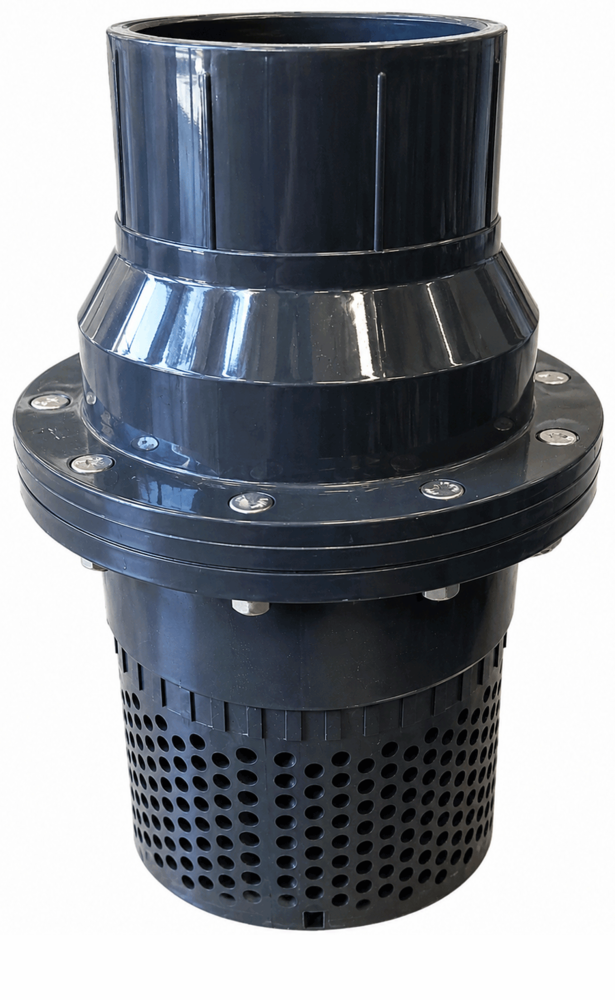

4" Vertical Foot Swing Check Valve - Allows water to flow in only one direction in a hose or pipe. These install near your skimmer or filter, so if the pump is turned off, it will not back-siphon and dry up.
Also used to help with priming an external pump. Used on the intake to keep water in the pipe. Handy integrated intake screen. Designed for vertical or horizontal installation. Easy to take apart with bolt together design.
- 4" Slip x Slip Check Valve with Screen
- Opening approx 4.50" - Fits standard schedule 40 and schedule 80 PVC
- Schedule 80 PVC Body
- Swing flapper
- PTFE Seat
- EPDM Seals
- 304 SS Hardware
- Molded on screen - (permanently factory installed)
- 225 PSI - Test Pressure
- 150 PSI - Working Pressure @ 73° F
- Horizontal or Vertical installation
- Screen Perforations: 0.25" on sides and bottom of valve
- Approximate Dimensions: 12-5/8" L x 8" Diameter
- PVC Construction
- 1 Year limited mfg warranty
