Product Details
Purpose and Benefits:

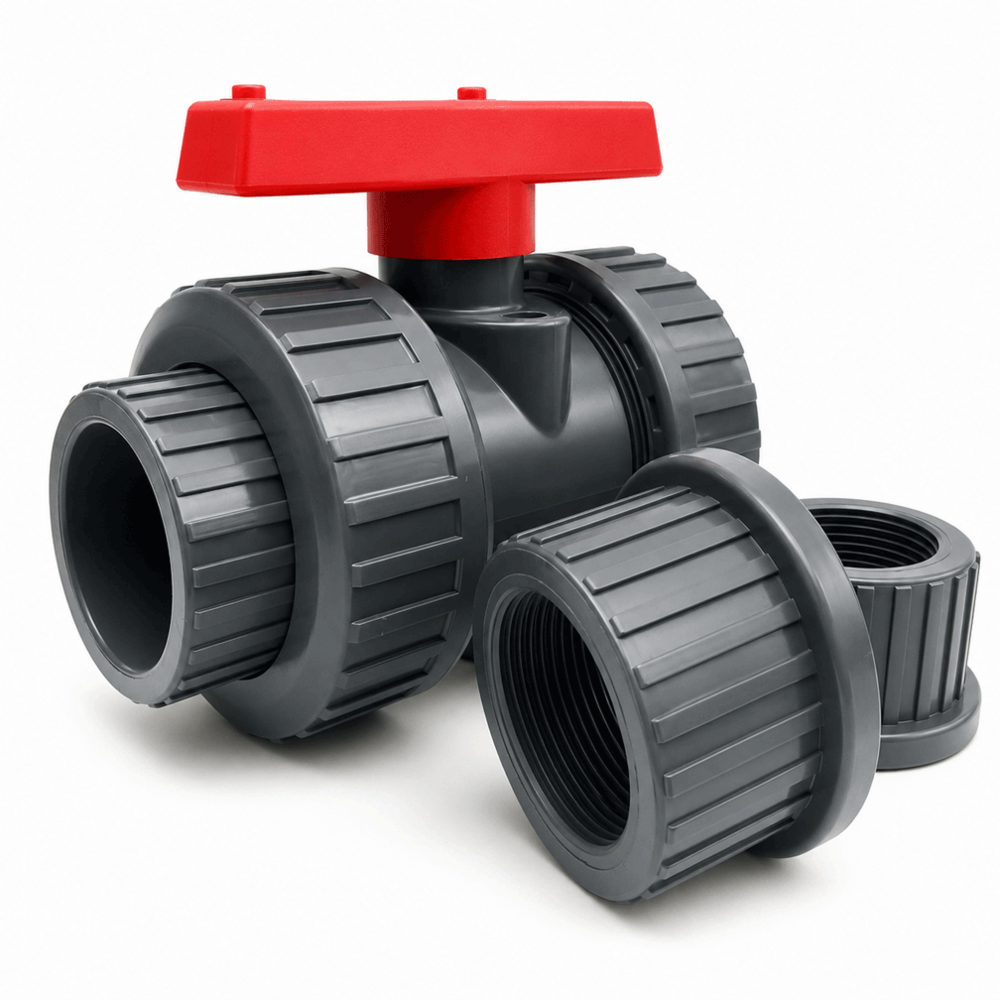

- Two-way blocking true union valve — seals in both directions.
- Unique double union / double block design permits in-line maintenance without disconnecting pipe.
- Full, unobstructed flow without any turbulence or pressure drop.
- EPDM O-Ring seals and self-lubricating PTFE seats are corrosion resistant and resistant to most chemicals.
- External adjustment allows compensation for seat wear.
- Quick and easy disassembly without the use of special tools-Handle doubles as a wrench.
Details:
- Material: Schedule 80 PVC
- PTFE Seats with EPDM Seals
- Size: 1-1/2" - Supplied with both FPT (threaded) and Socket (slip) in the box.
- End Type: Threaded* and Socket
- Test Pressure: 225 PSI
- Working Pressure: 150 PSI - Vacuum Rated
- 100% Full Port Opening
- Approximate dimensions: 6-3/4" L x 5-3/8" H x 4" Ø
