Product Details

Atlantic Water Gardens 36" Basin Kit - Just add the Spillway for a beautiful formal fountain

Atlantic Basin Kits are designed to fit all our Formal Spillways perfectly, whether you’re adding the shimmering nighttimeenchantment of a ColorFalls or the elegant touch of class of the Stainless Steel Scupper. From the pump to the plumbing, BasinKits provide everything you need to complete the installation, including double filtration, tubing, fittings, Splash Mat, even anAutomatic Fill Valve. Atlantic’s Basins feature one piece construction, a filtered pump chamber and built-in plumbing channels to create theperfect reservoir, above or below ground, for all ColorFalls, Scuppers and Water Spouts. Add an optional Splash Mat to reduce splash, conserve water and ensure your pump remains submersed at all times.

Several advantages including:

  • Convenient and Easy
  • Affordable
  • Basin is one piece construction
  • Basin equipped with a unique filtered pump chamber
  • Basin has built-in plumbing channels for ease of installation.
  • Ideally used in retention walls, Fireplace surroundings and much more!

TIP:
  • Want to use our basins but need a rectangular basin shape?Build your wall-stones around the basin to whatever shape you wish, then fill the voids with pieces of foam board cut to fit.Cap with gravel to complete the custom basin.

Specifications:
  • Manufacturer's Part # CFBASINKIT36
  • Basin Kit Model: 36"
  • Description: Complete Basin Kit
  • Can be used with: All 36" or less Spillways
  • Basin Dimension (approx.): 56" W x 24" D x 16" H
  • Pump Model: TT4000
  • Pump Flow is approximately 4490 gph @ 0' head height and 3330 gph @ 5' head height
  • Pump uses approx.: 230 watts
  • Tubing Type and Size (approx.): 9 FT of 1 1/2" Flex PVC Tubing
  • Splash Mat Help reduce water loss
  • Auto-fill device help maintain a consistent water level

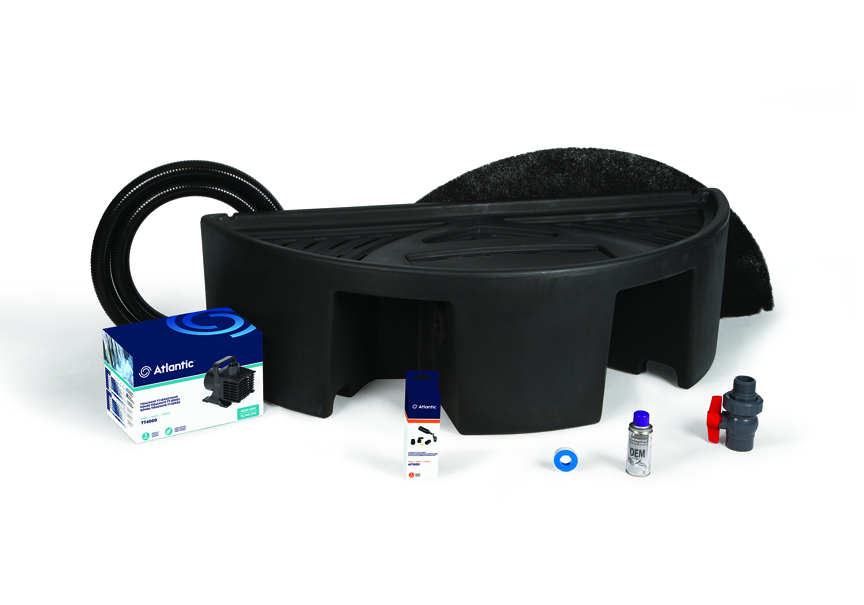

Includes:
  • (1) AWG - 36" Pond-Free Basin (CFBASIN36)
  • (1) AWG - Tidal Wave II - Asynchronous Mag-Drive Pump - 3700 GPH (TW3700)
  • (1) 9 FT of 1 1/2" Flex PVC Tubing
  • (1) AWG - Anti-Splash Mat (CFSPMA36)
  • (1) AWG - Auto Fill Kit (AF1000)
  • (1) ColorFalls Fitting Package (Adapters, Single Union Flow Valve, Glue, Thread Sealant)
  • (1) Instruction Booklet


Spillway is required - Choose from the theStainless Steel Scupper,Color Changing Colorfalls or theOriginal ColorFalls units
