ProLine HFS - High Flow Submersible Pump - 1/4 HP - 3270 GPH - 90103

ProLine HFS - High Flow Submersible Pump - 1/4 HP - 3270 GPH - 90103
Suggested Retail$489.99
Our Price$358.99You save27%
Usually ships the same business day
90103

Product Details

ProLine by Danner Manufacturing - HIGH-FLOW SUBMERSIBLE WATER PUMPS have a Vortex impeller for increased torque flow. These pumps are excellent for medium to high head lift applications. These pumps are completely submersible and designed for 24 hour continuous duty operation. Can work with or without the removable intake screen. When using without the intake screen - the pump is solids handling.


Details:
  • Pump Model: HFS - PBF20 - 90103
  • Fish safe operation
  • Wildlife safe removable intake screen
  • Rugged Motor: Durable, Stainless steel. Corrosion resistant motor.
  • High Quality Mechanical Seals: Double Silicon Carbide mechanical seals for additional protection against leakage.
  • With intake screen removed - pump becomes solids handling and can pass solids up to 1-1/8" diameter
  • Large Solid Handling Capability: Non-clog vortex impeller and volute designed for water containing decomposed plant matter and debris up to 1-1/8" diameter
  • Designed for medium to high head applications
  • Built-in Thermal Overload protection to keep pump from overheating or burning out
  • Fully submersible use only (Do not run dry)
  • 2 Year Limited Manufacturer's Warranty
  • Instruction Manual .PDF

Description:
Description PBF20
Dimensions (L x W x H) 9.25" x 6.1" x 14.2"
Amps 3.7
Max Watts 444
Volts 120
Hertz 60
Horsepower 1/4
Max Flow 3270 gph
Max Head 21'
Discharge 2" FPT
Power Cord Length 20'
Flow @ 0ft 3000 gph
Flow @ 5ft 2604 gph
Flow @ 10ft 2250 gph
Flow @ 15ft 1800 gph
Flow @ 20ft 1122 gph
Flow @ 25ft 530 gph

Recommendation:

For maximum flow rates we recommend the largest diameter tubing you can use. Using small diameter tubing will not allow the flow rates that these pumps can provide.

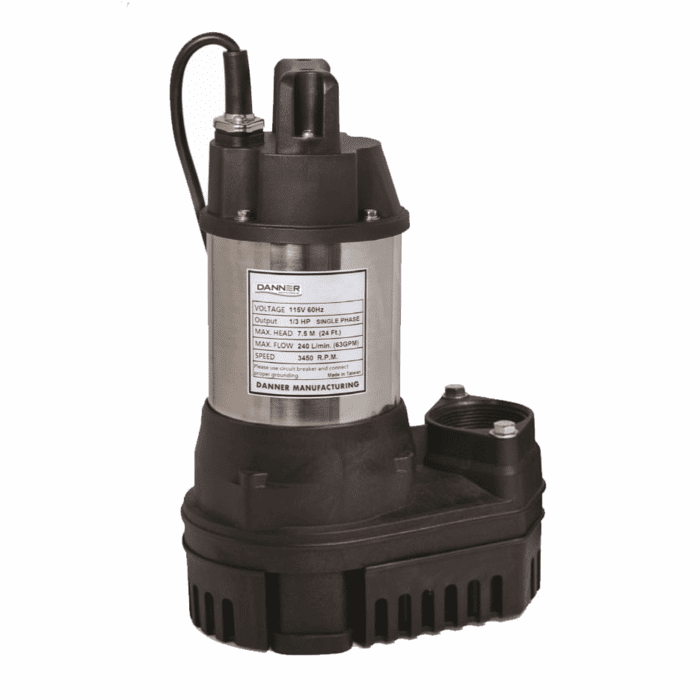

Pump may vary from image depending on the model
