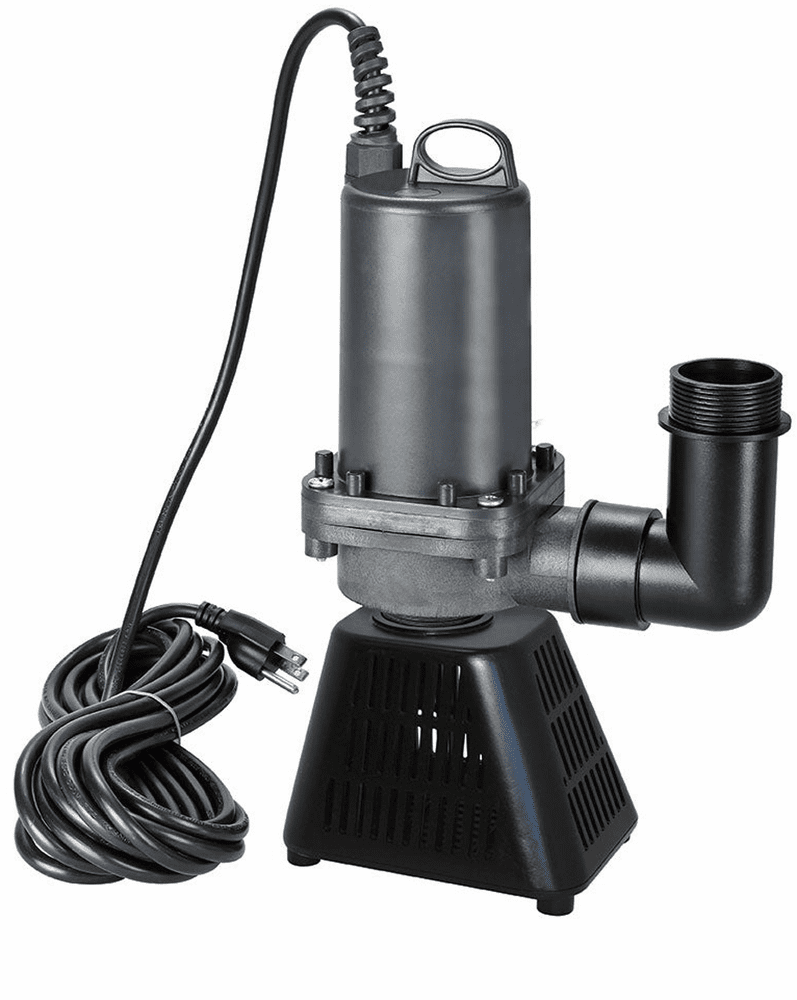

ProLine by Pondmaster - Skimmer Pump - 5100 GPH

ProLine by Pondmaster - Skimmer Pump - 5100 GPH - 30' Head Lift

Item #:	20360
Suggested Retail:	$475.22
Our Price: Only	$294.64 You save: 38%
Availability:	Usually ships the same business day Estimated Delivery Date
Stock Status:
Order Quantity:

Bookmark this page

ProLine by Pondmaster - Skimmer Pump - 5100 GPH - 30' Head Lift

Product Features

Product Reviews

Purpose and Benefits:

ProLine by Pondmaster Skimmer Pump with HY-DRIVE Technology. Submersible pump for Water Gardens and Ponds. Continuous duty pump designed for use inside a pond skimmer to move large volumes of water silently and efficiently through filtration systems, a waterfall, stream or fountain. Its compact size allows it to fit in virtually any skimmer. Energy-Saving Hy-Drive Technology.

Details:

Oil-Free, Magnetic-drive

Overload protection from self-resetting thermal overload switch

Cost-saving, energy efficient operation

Vortex impeller, with large pre-filter, easy to disassemble without tools

20ft Grounded Power Cord

Pump must be used either partially or completely immersed in a skimmer or pump vault.

Unique upright design, specifically for pond skimmer use.

Rigid pre-filter stabilizes pump while protecting it from large debris

Includes 1-1/2" elbow, connectors and couplers for 1-1/2" & 2" - Unique fittings work with both true size and oversize spiral non-kink tubing in 1-1/2" ID or 2" ID.

Free Mesh Pump Bag included for extra pump protection

3 Year Limited Manufacturer's Warranty

Description:

Description	20350	20355	20360	20365
Dimensions (HxWxL) - Includes Intake Screen	14"x6"x5"	14"x6"x5"	15"x6"x5"	15"x6"x5"
Watts @ 5ft	150	147	439	593
Amps	1.3	1.3	3.6	4.9
Volts	120	120	120	120
Hertz	60	60	60	60
Max Flow	1400 gph	2550 gph	5100 gph	6600 gph
Max Head	22'	11.5'	30'	30.5'
Discharge	1-1/2" MPT	1-1/2" MPT	1-1/2" MPT	1-1/2" MPT
Power Cord Length	20'	20'	20'	20'

* To Achieve Maximum Flow from 20360 and 20365 models,
a Minimum of 2" ID tubing should be used.

Curve Chart:

Item #	Amps	Watts @ 5ft	@0'	@1'	@3'	@5'	@7'	@10'	@15'	@20'	@25'	@30'	Shut Off
20350	1.3	150	1400	1275	1250	1150	1100	950	675	350	-	-	22'
20355	1.3	147	2505	2380	2010	1490	1045	455	-	-	-	-	11.5'
20360	3.6	439	5100	5100	5050	4650	4375	3900	3050	2425	1675	-	30'
20365	4.9	593	6625	6600	6275	5500	4925	4325	3325	2425	1850	550	30.5'

To calculate number of gallons in the pond:

Multiply: Length (ft.) x width (ft.) x depth (ft.) x 7.5 = total gals.
